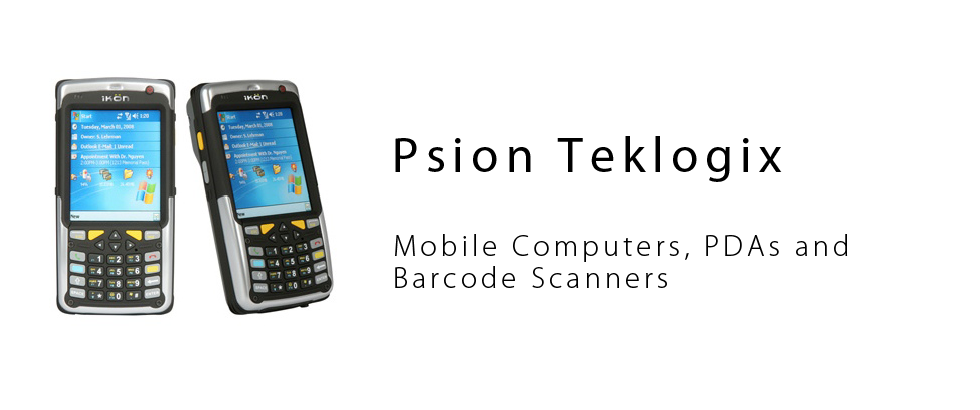

The WorkAbout Pro from Psion Teklogix is truly one of the best handheld computers available for data collection tasks. So what makes the WorkAbout Pro so unique? Some may say it is its versatility and ease of adding various options that set it apart. Others may argue that the durability of the WorkAbout Pro outperforms all other terminals in its class and price range. No matter what the argument may be, the fact is that the WorkAbout Pro series continues to be the top selling hand-held terminal for Psion Teklogix worldwide.As an authorized Psion Teklogix reseller, DataGear® is proud to recommend the WorkAbout Pro to our customers. DataGear® offers both new WorkAbout Pro 3‘s as well as refurbished WorkAbout Pro G1’s and G2’s. All refurbished WorkAbouts come with a 60 day warranty and optional extended maintenance plans are also available.
The WorkAbout Pro 3 can be configured in multiple ways giving you flexibility as your business needs change. You can easily add or replace various modules such as 801.1a/b/g or cellular network radios in combination with a multitude of different bar code scanners and imagers. You can also add RFID and biometric reading capability.
Call to order or speak with one of our representatives today (714) 556 – 5055. Or you can email us.
| WORKABOUT PRO G2 SPECS | |
| MODEL VARIANTS | WORKABOUT PRO C – Model 7527C-G2WORKABOUT PRO S – Model 7527S-G2 |
| PLATFORM | PXA270 520 MHz, 32 bit RISC CPU256 MB Flash, 128 MB Ram |
| OPERATING SYSTEM | Microsoft Windows CE 5.0Microsoft Windows Mobile 6 Classic, Professional |
| WIRELESS COMMUNICATION | Optional expansion modules for:802.11 b/g Compact Flash Radio operating in the 2.4GHz band802.11 a/b/g Compact Flash Radio with integrated antenna operating in 2.4GHz and 5GHz bandsGSM/GPRS EDGE (via expansion interface) Triple band, 850/1900/2100MHz Voice and DataIntegrated Bluetooth class II, V 2.0+EDRNote: 802.11 b/g, GSM/UMTS and Bluetooth are available simultaneously Note: All expansion modules are available factory configured or user installable |
| BARCODE APPLICATIONS | Optional 1D laser scanning expansion modules in standard range, long range, and auto range configurationsOptional 1D linear imager expansion moduleOptional 2D area imager expansion moduleOptional bolt-on pistol gripNote: All expansion modules are available factory configured or user installable |
| RFID MODULE OPTIONS | HF Module Frequency: 13.56 MHz Tags supported: ISO 15693, Phillips ICode, TI TagIt, Tagsys (C210, C220, C240, C270) Read/write range up to 80 mm (3.15 in)MIFARE module frequencyL 13.56 MHz Tags supported: ISO 14443 A and B, Mifare read/write range up to: 50 mm (1.97 in)LF module frequency: 125 KHz, 134.2 KHz Tags supported: EM 4x0x, EM 4×50: HiTag 1 and 2, ISO HDXA and FDXB read/write range up to 70 mm (2.756 in)UHF module frequency: 868 MHz or 915 MHz read range: up to 150 cm (4.92 ft) [915 MHz] and up to 80 cm (2.62 ft) [868 MHz] Tag supported: EPC Class 1, Gen 2, other protocols depending on regionNote: All expansion modules are available factory configured or user installable. |
| USER INTERFACE | Color touch screen display 9.144 cm (3.6 in) diagonal full VGA 480 x 640 resolution Transflective, portrait mode TFT adjustable back light Sunlight readable (for outdoor use) high reliability LED back lightTouch screen (standard) Passive stylus or finger operation Signature captureKeyboards full alpha-numeric (C model) Numeric (S model) Ergonomically enhanced for ambidextrous one-hand operation, backlit, high durability, hard-capped keysIndicators and controls LED indicates battery charge statusAudio 90 db mono speaker Mono microphone 86 db beeper |
| PROGRAMMING ENVIRONMENT | HTML, XMLPsion Teklogix Mobile Devices SDKHardware development kit (HDK).Net and C++ programming using Microsoft Visual Studio 2005Java programming supporting JDK 1.2.2 or higherStandard Protocol APIs Windows sockets (CE.net) |
| APPLICATION SOFTWARE | Internet Explorer 6.0 included with Windows CE 5.0Internet Explorer Mobile included with Windows Mobile 6Windows Mobile Device CenterPhone dialer and personal information manager (PIM) included with Windows Mobile 6 ProfessionalUnique Psion Teklogix Voice Dialer and Contacts Manager included Windows CE 5.0PTX Connect VoIPOptional OpenTekTerm terminal emulation software, supports IBM 5250, IBM 3270, HP2392, ANSI and TESSMobile Control Center (MCC) device management |
| EXPANSION SLOTS | One SD/MMC memory card slot – user accessibleEnd-cap USB Interface supports PCMCIA (type II), GSM/GPRS EDGE and other third-party expansion modules developed using Psion Teklogix WORKABOUT PRO Hardware Developer’s KitFlex cable interface with robust connector: supports scanner (serial) and imager (USB) modulesOne type II CF Card Slot |
| EXTERNAL CONNECTORS | One tether connection with full RS232 and USB On-the-Go (USB 1.1) functionalityOne Low-Insertion Force (LIF) docking connectorDC Power Jack |
| POWER MANAGEMENT | Optional 3.7V, 2000 mAh high capacity battery packOptional 3.7V, 4000 mAh super high capacity battery packAdvanced smart battery with gas gauge3 power source options: runs off battery, AC power, or automotive power suppliesBuilt in chargerRechargeable, user replaceable backup battery pack |
| ENVIRONMENTAL | Withstands multiple drops from 1.8 m (6 ft) or 26 drops (on 12 edges, 8 corners, 6 faces) from 1.5 m (5 ft) to concrete while powered on and configured with accessories such as WiFi, radio, scanner/imager and pistol gripRain/Dust: IP655, IEC 60529Operating Temperature: -20 degrees Celsius to +50 degrees Celsius (-4 degrees Fahrenheit to 122 degrees Fahrenheit)5%-95% RH non-condensingStorage temperature -40 degrees Celsius to +60 degrees Celsius (-40 degrees Fahrenheit to 140 degrees Fahrenheit)ESD +/- 8kVdc air discharge, +/- 4kVdc contacts |
| PHYSICAL DIMENSIONS AND WEIGHT | WORKABOUT PRO C: 223 mm x 75/100 mm x 31/42 mm (8.775″ x 2.95/3.94″ x 1.22/1.65″)WORKABOUT PRO S: 200 mm x 75/100 mm x 31/42 mm (7.87″ x 2.95/3.94″ x 1.22/1.65″)Weight (w/o battery pack): WORKABOUT PRO C 455 g (1 lb) WORKABOUT PRO S: 390 g (0.859 lb) |
| POWER ACCESSORIES | AC power supply (charge and operate hand-held)Automotive power supply (charge and operate hand-held)Single and quad slot battery pack chargersPowered cradle for vehicle mount applications |
| COMMUNICATION ACCESSORIES | Quad dock (4 iste) with 10/100 BaseT Ethernet and charge functionsDesktop docking station (charges hand-held and spare battery) provides USB1.1 host and device ports and supports optional plug-in expansion modules supporting 10/100 BaseT Ethernet or RS232 connectionsUSB On-the-Go cable supports Active Sync without requiring a docking stationOptional end caps supporting RS232, TTL, and IrDA |
| CARRYING ACCESSORIES | Hand-strap, pistol grip with trigger, holster, various protective carrying cases and pouches |
| APPROVALS | Safety: CSA/UL60950-1, IEC 60950-1, EN60950-1EMC: FCC Part 15 Class B EN 55022 EN 55024 EN301 489Laser: IEC 60825-1, Class 2 FDA 21 CFR 1040.10. 1040.11 Class IIBluetooth: 1.2RF: Bluetooth and 802.11 b/g: EN300 328, Part 15.247 GSM/GPRS: EN50360/361, NAPRD03; 3GPP51.010; FCC Parts 22 and 24; Industry Canada; RSS-132 and 133In Vehicle Cradle: e Mark |
Call to order or speak with one of our representatives today (714) 556 – 5055. Or you can email us.
